The modern automobile is a symphony of complex engineering, yet few of its components are as universally recognized and simultaneously misunderstood as the car horn. To the average driver, the horn is merely a button on the steering wheel that produces a warning blast. However, beneath the hood lies a specialized piece of hardware designed to withstand extreme temperatures, vibrations, and moisture, all while maintaining the ability to produce a precise decibel level on demand. To understand what a car horn looks like, one must look past the steering wheel and dive into the specific hardware configurations that have evolved over more than a century of automotive technology.
The Physical Form: Dissecting the Appearance of Modern Car Horns
When you locate a car horn within the engine bay—usually tucked behind the grille or mounted near the radiator support—you won’t find a single, uniform design. Instead, car horns generally fall into two distinct visual categories based on their acoustic engineering: the disc horn and the snail (or trumpet) horn.
The Disc Horn: Compact and Circular
The disc horn is the most common variety found in budget-friendly or compact vehicles where space is at a premium. Visually, it resembles a small, flat metal pancake or a thick coaster. It is typically between three to five inches in diameter and about an inch thick. The exterior is usually finished in a black e-coating or zinc plating to prevent corrosion.
On the front of the disc, you will often see a series of concentric ridges or a perforated metal cover. These aren’t just for aesthetics; they protect the internal vibrating diaphragm while allowing sound waves to escape. On the back, you will find a small bracket for mounting and two electrical terminals (spade connectors) where the vehicle’s wiring harness attaches.
The Snail Horn: The Spiral Design

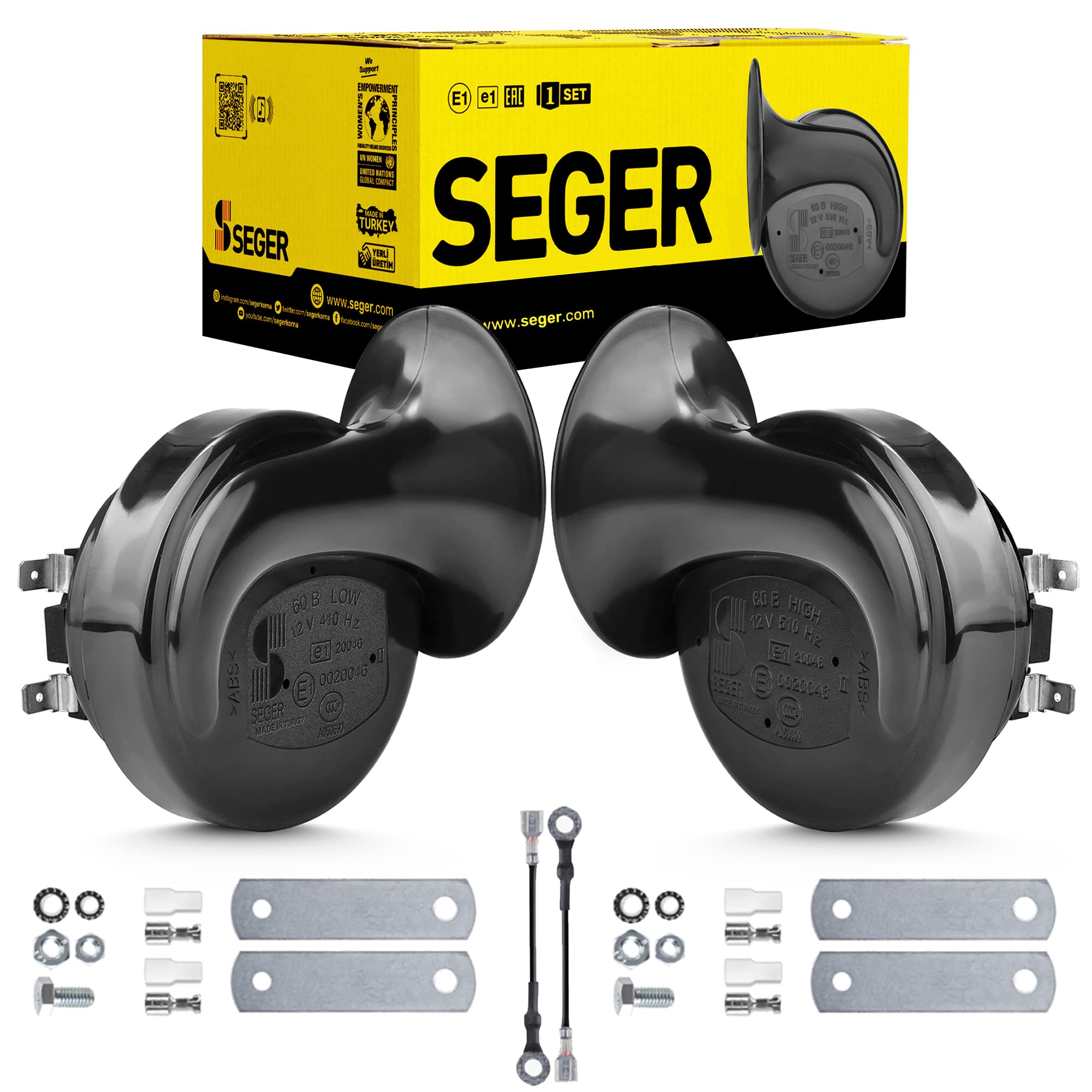

Higher-end vehicles and those requiring a deeper, more “European” tone utilize the snail horn. As the name suggests, this component looks remarkably like a snail shell or a coiled trumpet. It features a circular housing similar to the disc horn, but it is attached to a long, spiraling plastic or metal tube that widens toward the opening.
This “flared” appearance is a functional design choice known as an acoustic chamber. By forcing the sound through a coiled path, the device can produce a lower frequency and a richer tone without requiring a massive physical footprint. These are often sold in pairs—a “High Tone” and a “Low Tone”—and when mounted together, they look like a set of twin mechanical lungs nestled behind the vehicle’s front fascia.
The Internal Mechanisms: How Technology Creates Sound
To truly understand what a car horn “looks” like, one must look inside the casing. The interior of a car horn is a masterclass in mid-century electromechanical design that remains largely unchanged because of its sheer reliability.
Electromagnetic Coils and Contact Points
If you were to cut a car horn in half, the most prominent feature would be a tightly wound coil of copper wire. This is the electromagnet. In the center of this coil sits a steel plunger or armature. This setup is the “engine” of the horn. Surrounding this are the contact points—tiny metal tabs that act as a high-speed switch.
In tech terms, the horn operates as an oscillator. When you press the horn button, electricity flows through the coil, creating a magnetic field that pulls the armature toward it. As the armature moves, it breaks the circuit at the contact points. The magnetic field collapses, the armature springs back, the circuit closes again, and the process repeats hundreds of times per second.
The Vibrating Diaphragm
Attached to the armature is a thin, flexible metal disc called the diaphragm. This is the part that actually “looks” like the speaker of the device. As the electromagnet rapidly pulls and releases the armature, the diaphragm flexes back and forth. This movement displaces air, creating the sound waves we hear. In a disc horn, this sound is emitted directly. In a snail horn, these vibrations are funneled through the spiral housing to amplify and shape the sound.
The thickness and material of this diaphragm are precisely engineered. Too thick, and the horn won’t be loud enough; too thin, and the metal will succumb to fatigue and crack after only a few uses.
Technological Evolution: From Bulbs to Smart Sensors
While the core mechanics of the horn have remained stable, the technology surrounding how we signal others is undergoing a digital transformation. We are moving away from simple mechanical “beeps” toward integrated acoustic alert systems.
The Transition from Mechanical to Electronic
In many modern luxury vehicles and electric vehicles (EVs), the traditional electromechanical horn is being supplemented or replaced by electronic sound generators. These don’t “look” like traditional horns; they look more like ruggedized, waterproof speakers.
These electronic units use solid-state circuitry and digital signal processing (DSP) to create sound. This allows manufacturers to customize the “signature” of the vehicle. For instance, an EV might use a different frequency for low-speed pedestrian warnings than it does for a high-intensity emergency blast. These units are often smaller, lighter, and encased in high-impact polymers rather than heavy steel.
The Role of the Horn in Modern ADAS
Today’s car horn is no longer an isolated gadget; it is increasingly integrated into the vehicle’s Advanced Driver Assistance Systems (ADAS). In the tech-heavy landscape of modern automotive design, the horn can be triggered by the car’s onboard computer without human intervention.
For example, if the vehicle’s forward-facing radar and cameras detect an imminent collision and the driver has not reacted, some experimental safety systems are programmed to emit a short horn burst to alert the other driver or pedestrian. In this context, the horn becomes a peripheral output device for the car’s AI, similar to how a computer might use a system beep to alert a user to an error.
Troubleshooting and Maintenance: A Tech-Focused Approach
Because the car horn is an electrical component exposed to the elements, it is prone to specific technical failures. Knowing what a healthy horn looks like—and what a failing one looks like—is essential for any DIY tech enthusiast or car owner.
Diagnosing Electrical Failures
When a horn fails, the culprit is rarely the metal casing itself but rather the electrical path leading to it. A technician will first look at the “clock spring”—a specialized ribbon cable inside the steering column that maintains a connection while the wheel turns. If the horn stops working only when the wheels are turned, the tech is looking for a frayed or broken ribbon cable.
Furthermore, the horn circuit is high-current, meaning it requires a relay. A horn relay is a small plastic cube found in the fuse box. If the horn “looks” fine but remains silent, the internal switch of the relay may have fused shut or corroded. Tech-savvy owners often test this by swapping the horn relay with an identical one from a less critical system, like the fog lights, to see if function returns.
Upgrading to High-Performance Aftermarket Horns
The “tech” of car horns has a vibrant aftermarket scene. Many owners find factory horns to be too quiet or “tinny.” This has led to the popularity of brands like Hella, which produces the famous “Supertone” horns. These are instantly recognizable by their bright red protective grilles and larger, more robust circular housings.
Installing these requires an understanding of basic circuitry, as high-performance horns often draw more amperage than factory wiring can handle. This requires the installation of a dedicated wiring harness and an external fuse, treating the horn upgrade much like one would treat a high-end car audio installation.
The Future: Acoustic Vehicle Alerting Systems (AVAS)
As we move toward a future dominated by silent electric vehicles, the “look” and function of the car horn are shifting toward the Acoustic Vehicle Alerting System (AVAS). Since EVs produce almost no engine noise at low speeds, regulators in many regions now require them to emit a constant sound to protect visually impaired pedestrians.
The hardware for AVAS looks more like a modern smart speaker than a traditional horn. It is a digital transducer that can play complex audio files. In the future, the “car horn” as we know it—the clunky metal disc with a copper coil—may be completely phased out in favor of these multi-purpose digital emitters. These systems will not only provide emergency blasts but will also communicate the vehicle’s speed and direction through varied acoustic patterns, marking the next great leap in automotive signaling technology.
By understanding what a car horn looks like today—from its electromagnetic coils to its snail-shell resonators—we gain a deeper appreciation for the simple yet vital technology that keeps our roads safe. Whether it is a vintage disc or a modern digital AVAS, the horn remains one of the most essential pieces of “safety tech” ever devised.
